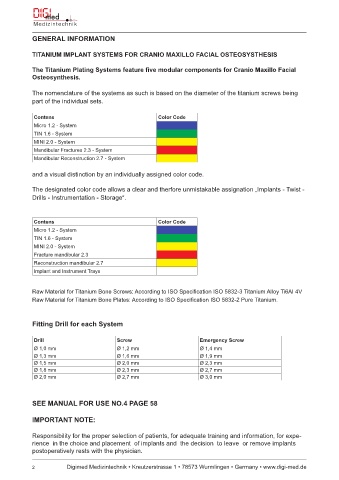

GENERAL INFORMATION

TITANIUM IMPLANT SYSTEMS FOR CRANIO MAXILLO FACIAL OSTEOSYSTHESIS

The Titanium Plating Systems feature five modular components for Cranio Maxillo Facial
Osteosynthesis.

The nomenclature of the systems as such is based on the diameter of the titanium screws being
part of the individual sets.

Contens Color Code
Micro 1.2 - System
TIN 1.6 - System
MINI 2.0 - System
Mandibular Fractures 2.3 - System
Mandibular Reconstruction 2.7 - System

and a visual distinction by an individually assigned color code.

The designated color code allows a clear and therfore unmistakable assignation „Implants - Twist -
Drills - Instrumentation - Storage“.

Contens Color Code
Micro 1.2 - System
TIN 1.6 - System
MINI 2.0 - System
Fracture mandibular 2.3
Reconstruction mandibular 2.7
Implant and Instrument Trays

Raw Material for Titanium Bone Screws: According to ISO Specification ISO 5832-3 Titanium Alloy Ti6AI 4V
Raw Material for Titanium Bone Plates: According to ISO Specification ISO 5832-2 Pure Titanium.

Fitting Drill for each System

Drill Screw Emergency Screw
Ø 1,0 mm Ø 1,2 mm Ø 1,4 mm
Ø 1,3 mm Ø 1,6 mm Ø 1,9 mm
Ø 1,5 mm Ø 2,0 mm Ø 2,3 mm
Ø 1,8 mm Ø 2,3 mm Ø 2,7 mm
Ø 2,0 mm Ø 2,7 mm Ø 3,0 mm

SEE MANUAL FOR USE NO.4 PAGE 58

IMPORTANT NOTE:

Responsibility for the proper selection of patients, for adequate training and information, for expe-
rience in the choice and placement of implants and the decision to leave or remove implants
postoperatively rests with the physician.
